Crossover distribution CEE 5-pole IP44

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Power distributors

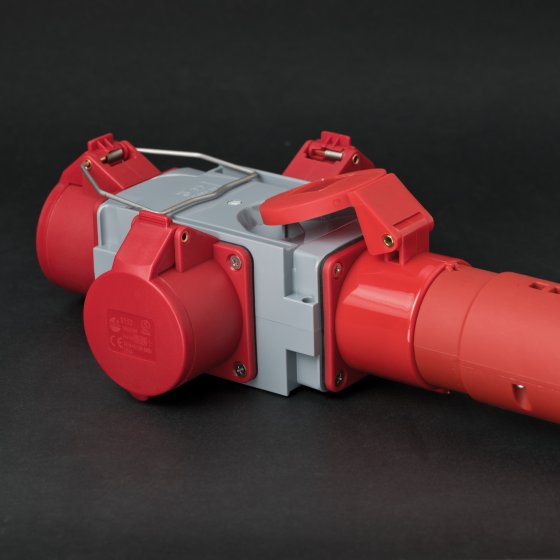

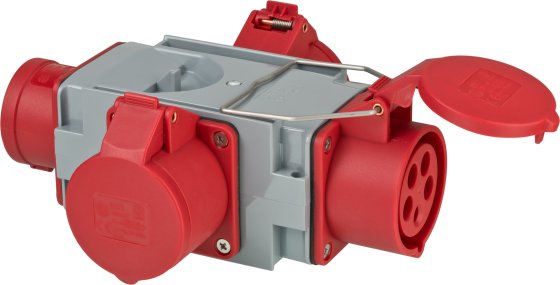

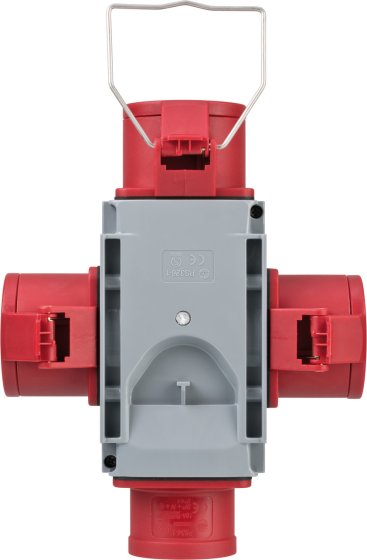

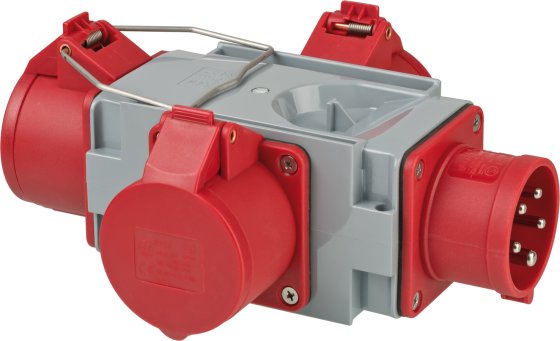

- Product image
- Additional product image
- Additional product image
- Additional product image

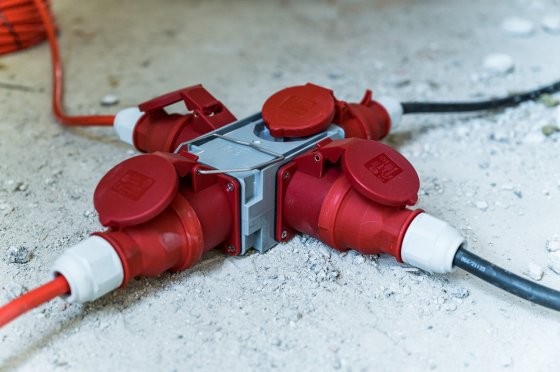

- Application image
- Product image
- Additional product image
- Additional product image
- Additional product image
- Application image
Article number 1081640
EAN 4007123285846
Article number 1081640
EAN 4007123285846
Description

Description

  • Housing made of robust special plastic.
  • Robust and functional cross-connect with a hanger.
  • Versatile application possibilities.
  • Connection coupling: CEE coupling 400 V / 16 A 5 pole.
  • Output sockets: 3 x CEE 400 V /16 A 5 pole with safety flap lid.
Protected against foreign bodies and splash water
Protected against foreign bodies and splash water

Protection against contact with tools, wires or similar with ? >1.0 mm, protection against foreign bodies with ? > 1.0 mm. As well as protection against splash water from all directions

Technical data

Technical data

  • Max. electr. load capacity: 11000 W
  • Nominal input voltage: 400 V
  • With carrying handle: No
  • Housing material: Plastic
  • Number of CEE socket outlets total: 3
  • Number of socket outlets total: 3
  • Degree of protection (IP): IP44
  • Suitable for outdoor area: Yes
Downloads

Downloads

All products are subject to technical changes
