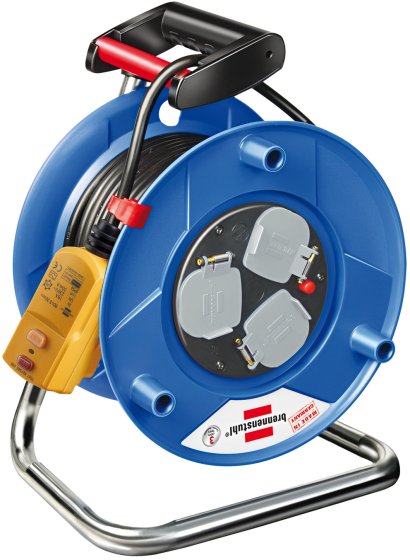

Brennenstuhl Garant 3-way socket outlet cable reel with RCD-plug (25m cable length, 30mA, ergonomic handle), cable colour: black

Hugo Brennenstuhl GmbH & Co Kommanditgesellschaft Cable Reels
- Product image
Article number 1218753
EAN 4007123133000
  • 3-way socket cable reel drum with 25m cable length H05VV-F 3G1,5 and ergonomic cable guide handle, RCD-plug
  • Small cable reel (240 V/13 A) with thermal cut-out protection against overheating and overloading, anti-dust and contamination self-closing socket cover
  • Cable drum with 30mA RCD-plug
  • Ergonomic cable guide handle for easy winding and rewinding
  • Scope of delivery: 1x Garant cable reel with RCD-plug in black cable colour (25m, 3-way socket outlet, reel Ø 240mm) - in best brennenstuhl® quality
Article number 1218753
EAN 4007123133000
Description

Description

Garant Brennenstuhl cable reel with 25m extension cable impresses with quality and safety in all areas. Its robust reel body is made from special plastic on a galvanised steel tube frame. It's not just equipped with a thermal cut-out protection against overheating, but has the following properties too: * Ergonomic cable guide handle * Easy winding and rewinding * 3-way socket outlet (240V) * Self-closing socket cover * Reel Ø 240mm * Nominal current: 13 A * Plug: RCD-plug 30 mA
RCD personal protection switch
RCD personal protection switch
  • An RCD (residual current circuit breaker) is an electrical protective device that is primarily used to protect against electric shocks
  • The RCD recognises the difference between the incoming and outgoing current in a circuit and automatically switches off the circuit in the event of a residual current
  • When used for personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest
Technical data

Technical data

  • Capacity in coiled state 230V: 960 W
  • Capacity in uncoiled state 230V: 3120 W
  • Usage: Outdoor
  • Housing material: Plastic
  • Area of use: Indoor
  • Number of earthed socket outlets:
  • Number of CEE socket outlets:
  • With CABLEPILOT: No
  • With plug storage: No
  • With Bretec: No
  • Cable quality: PVC
  • Cable length: 25 m
  • Cable designation: H05VV-F 3G1,5
  • With residual current circuit breaker (RCCB): Yes
  • Reel diameter: 240 mm
  • With carrying handle: Yes
  • Degree of protection (IP): IP20
  • Automatic cable winding: No
Downloads

Downloads

Similar products

1208853
Garant Bretec cable reel 25m H05VV-F 3G1,5 *GB*

All products are subject to technical changes
